10BASE-T1S

Contact Us

Technical Data

VNmodule60ConnectorChannelsPHYFeatures
1AE10M LAN8670ix Industrial

1 port 10BASE-T1S

Microchip LAN8670
2 ports 100/1000BASE-T1Broadcom BCM89883OPEN Alliance TC10 at 100BASE-T1
1AE10M LAN8670 V2

ix Industrial

1 port 10BASE-T1SMicrochip LAN8670
with Analog Devices AD3306

OPEN Alliance TC10/TC14 Wake/Sleep
10BASE-T1S

Reporting of PLCA events such as BEACON messages

2 ports 100/1000BASE-T1Broadcom BCM89883 OPEN Alliance TC10
100BASE-T1

Functions

  • Full access to the multidrop busline
  • Cycle-accurate simulation of multiple nodes on a single 10BASE-T1S port
  • Analysis of 10BASE-T1S networks
  • Setting of all relevant 10BASE-T1S parameters of a port

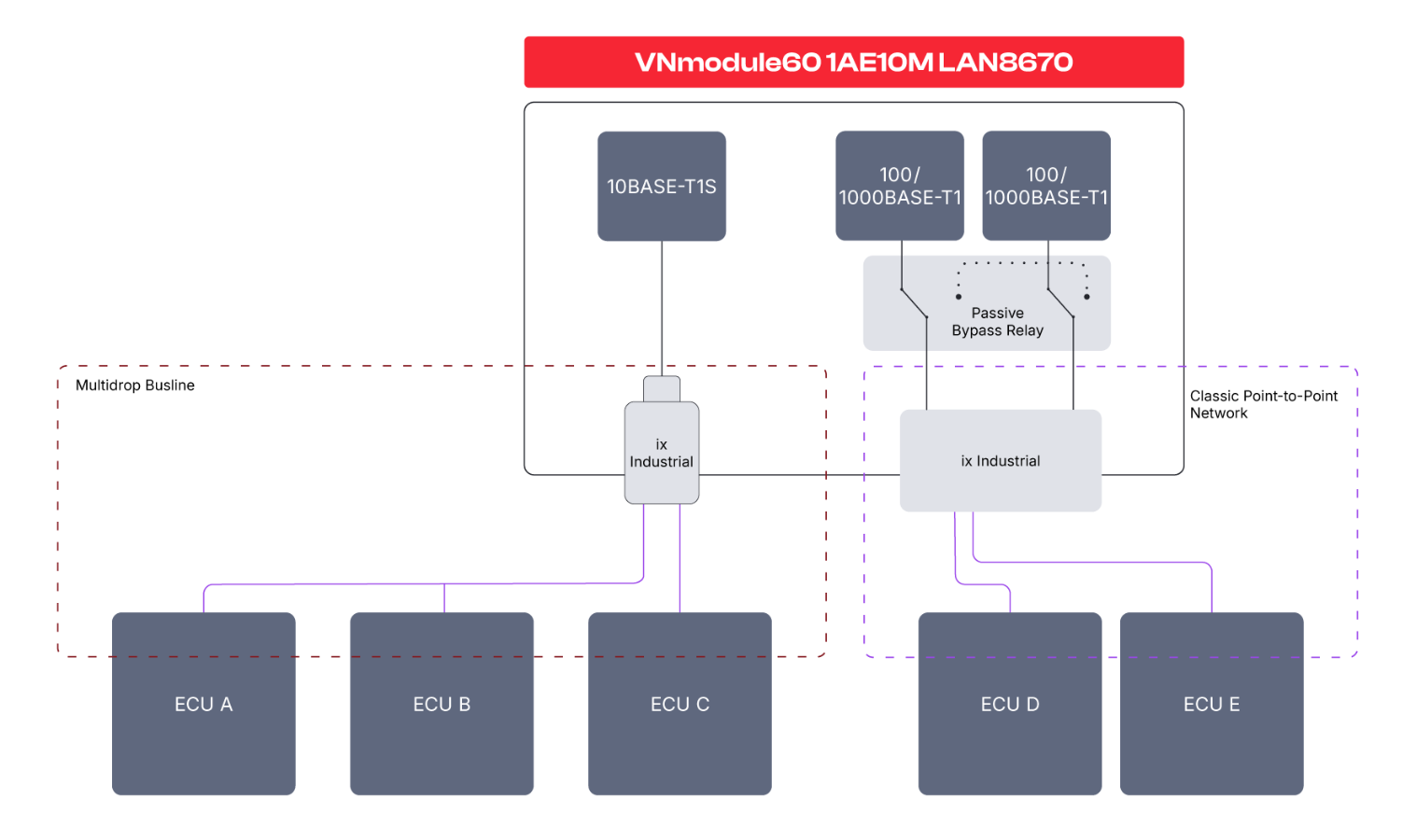

Block diagram of the VNmodule60 1AE10M LAN8670 with one 10BASE-T1S port on a multidrop busline and two 100/1000BASE-T1 ports on a classic point-to-point network
VNmodule60 1AE10MLAN8670
