Network Interfaces

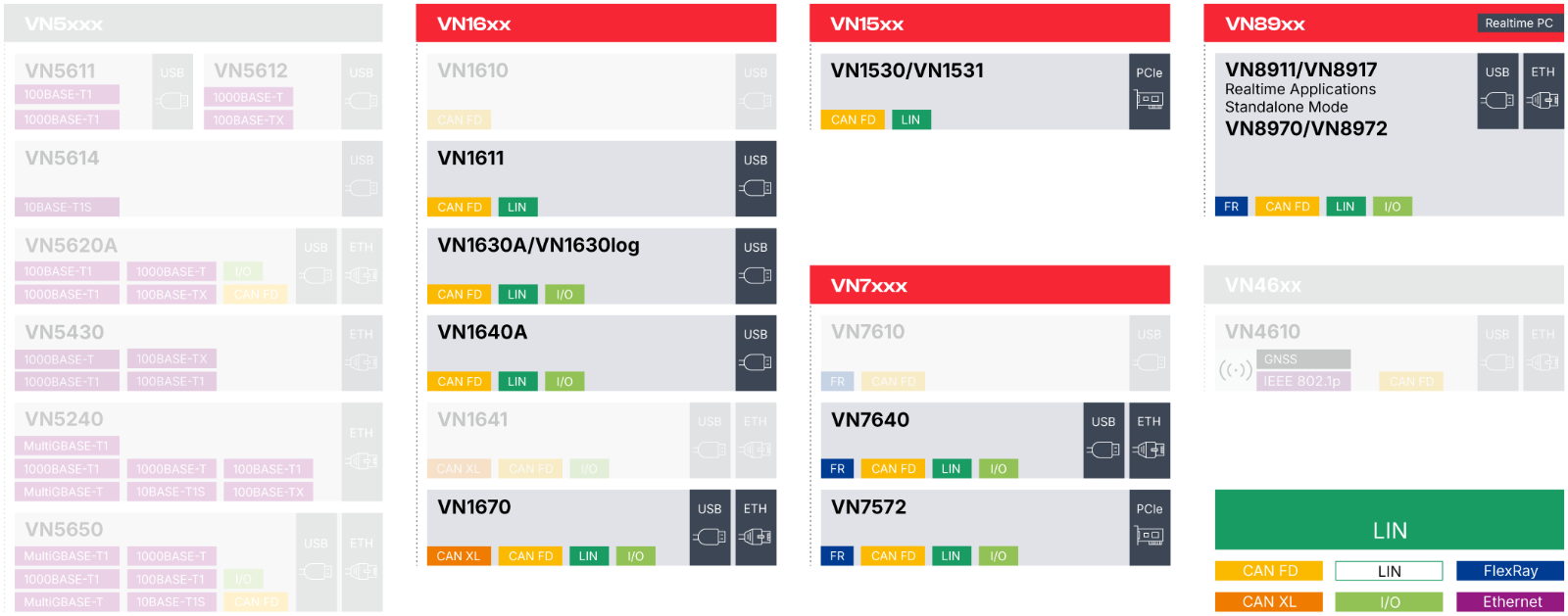

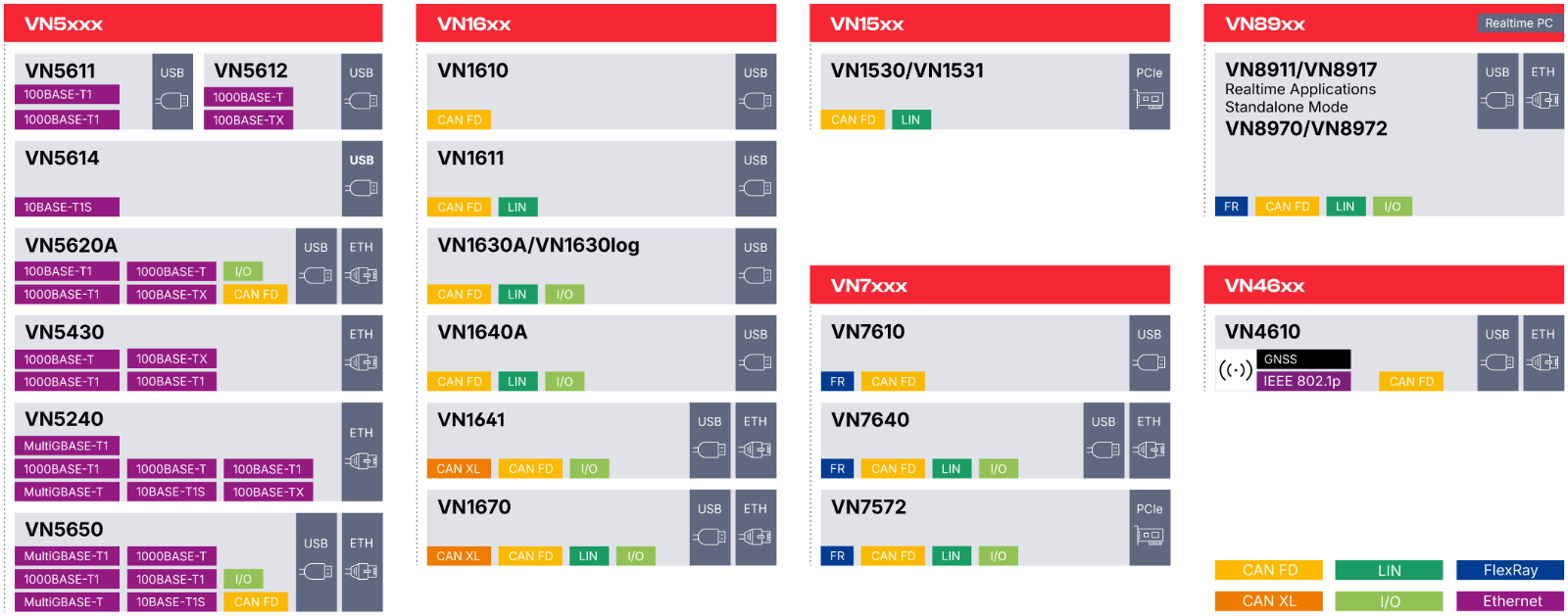

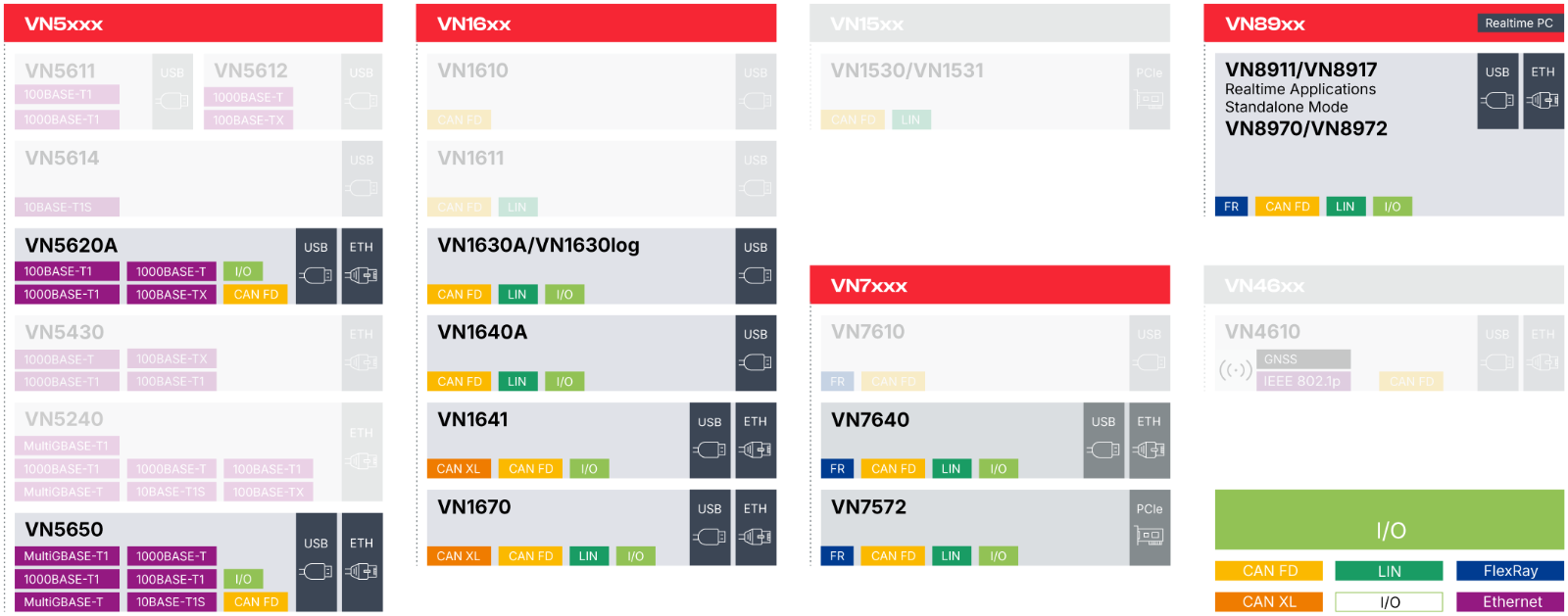

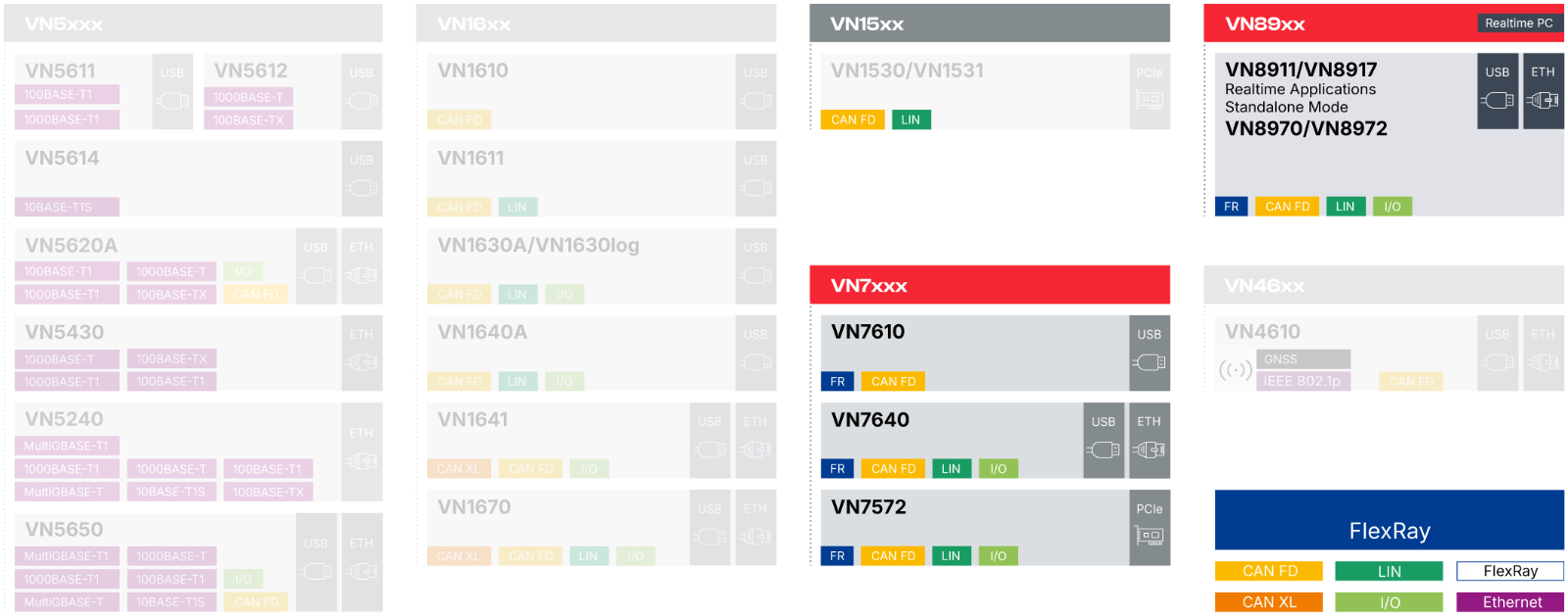

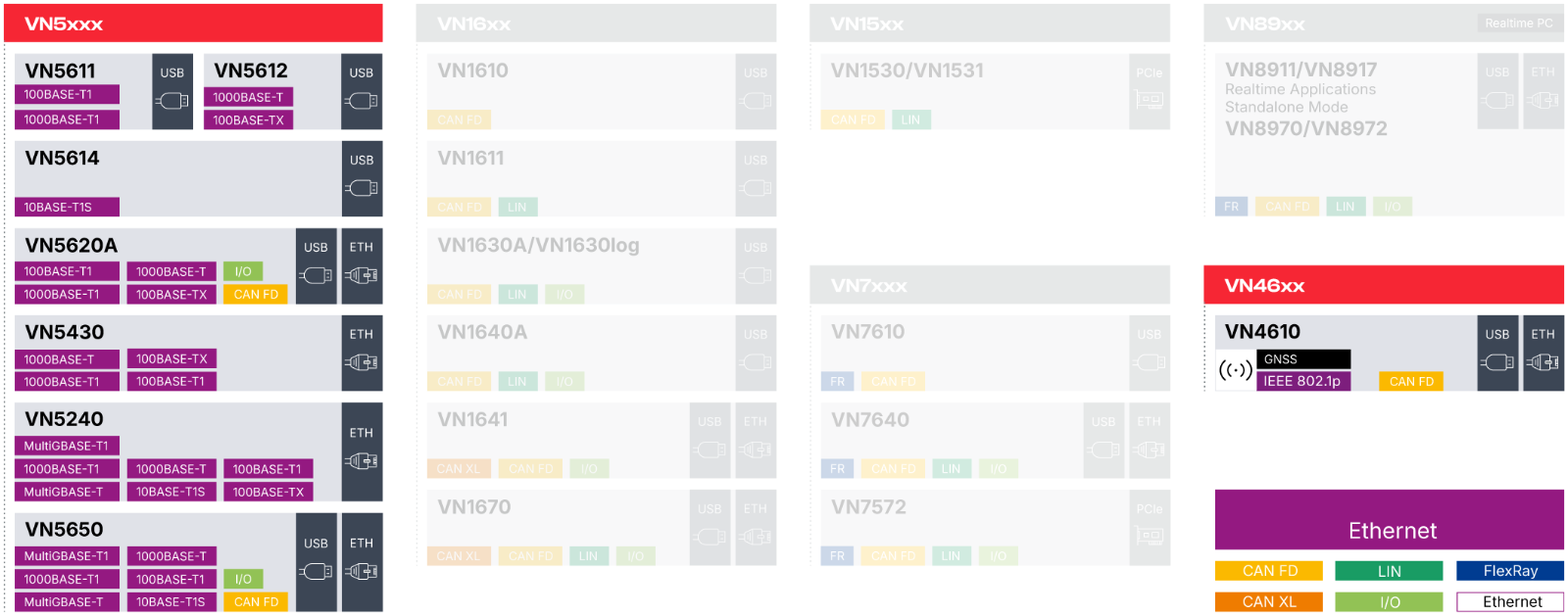

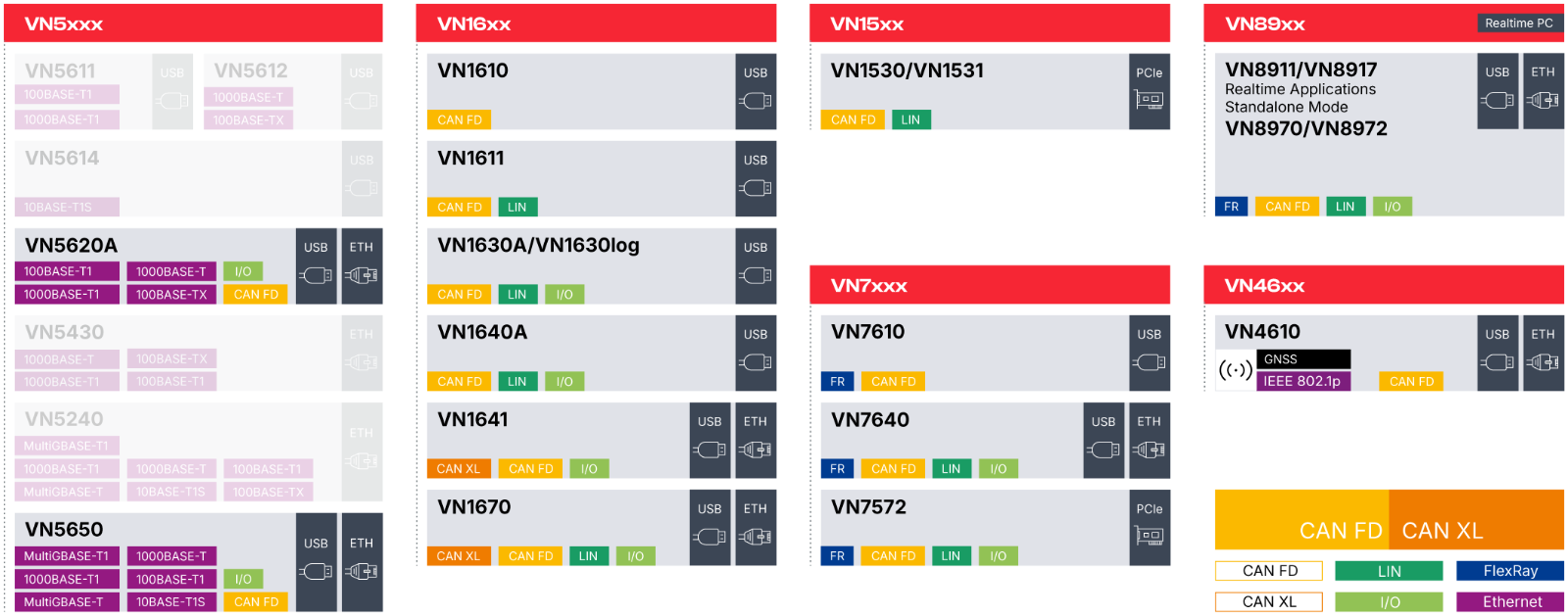

Network Interfaces: graphical overview according to bus physics
Software tools used to develop, simulate, test and maintain distributed systems require powerful and flexible network interfaces.

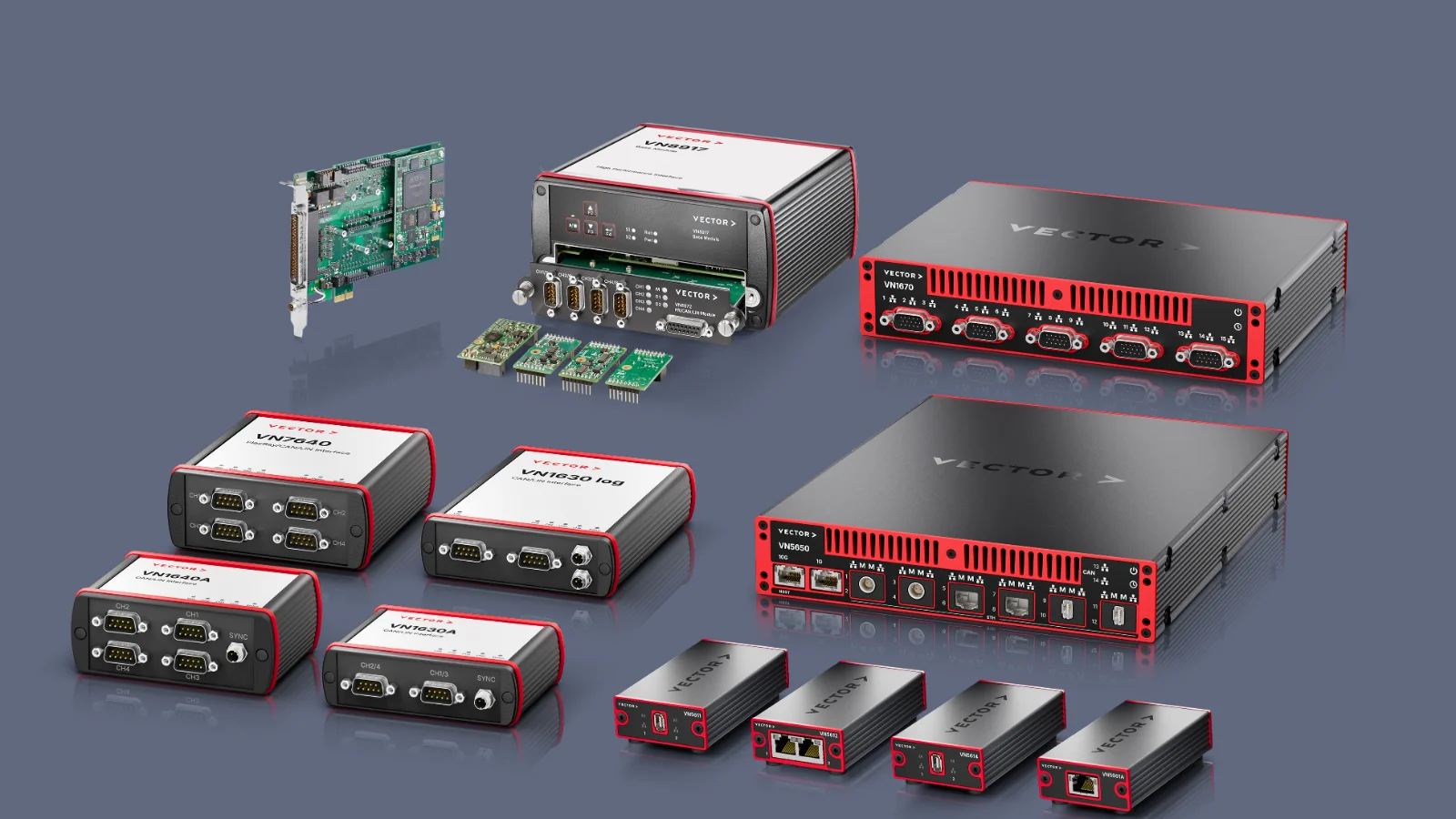

Vector offers you interfaces for CAN, CAN FD, LIN, J1708, Ethernet/IP, FlexRay, and MOST as well as driver software and programming interfaces for use with Vector software tools and in customer-specific solutions.
Interface Overview
| Bus System | Interface | PC Connection |
| CAN, CAN FD, LIN and J1708: | VN8900 VN1600 VN8810 CANboardXL* CANboardXL PCIe* CANboardXL pxi* | USB (RT PC) USB USB (OBD) PCI PCIe PXI |
| Ethernet and CAN / CAN FD: | USB | |
| FlexRay and CAN / CAN FD: | USB (RT PC) PCIe USB USB or Ethernet | |
| Bus Transceiver for CAN, LIN, J1708 and FlexRay | ||
| MOST: | VN2640 (MOST150) | USB |
| ARINC 429 (Avionic Systems): | USB | |
* not CAN FD capable
Downloads
-
2018-10-17 Driver/FirmwareVector Driver Setup 10.8.2
-
2018-04-17 Driver/FirmwareVector Driver Setup 10.6.0
-
2017-03-21 Driver/FirmwareVector Driver Setup 9.9.7
-
2016-12-21 Driver/FirmwareVector Ethernet Adapter Driver 9.9.26
-
2016-11-03 Driver/FirmwareCAN Driver DIAdem Update 3.1.11 (Windows 10/8/7)
-
2016-07-18 Driver/FirmwareXL Driver Library 9.7.26
-
2015-09-14 Driver/FirmwareVector Driver Setup non-ISO CAN FD 9.2.1
-
2015-05-06 Driver/FirmwareVector Driver Setup 9.1.0 (Windows XP/Vista)
-
2015-05-06 Driver/FirmwareVector Driver Setup 9.1.0 (Windows XP/Vista)
-
2014-01-08 Driver/FirmwareCAN Driver for LabVIEW® 1.6
